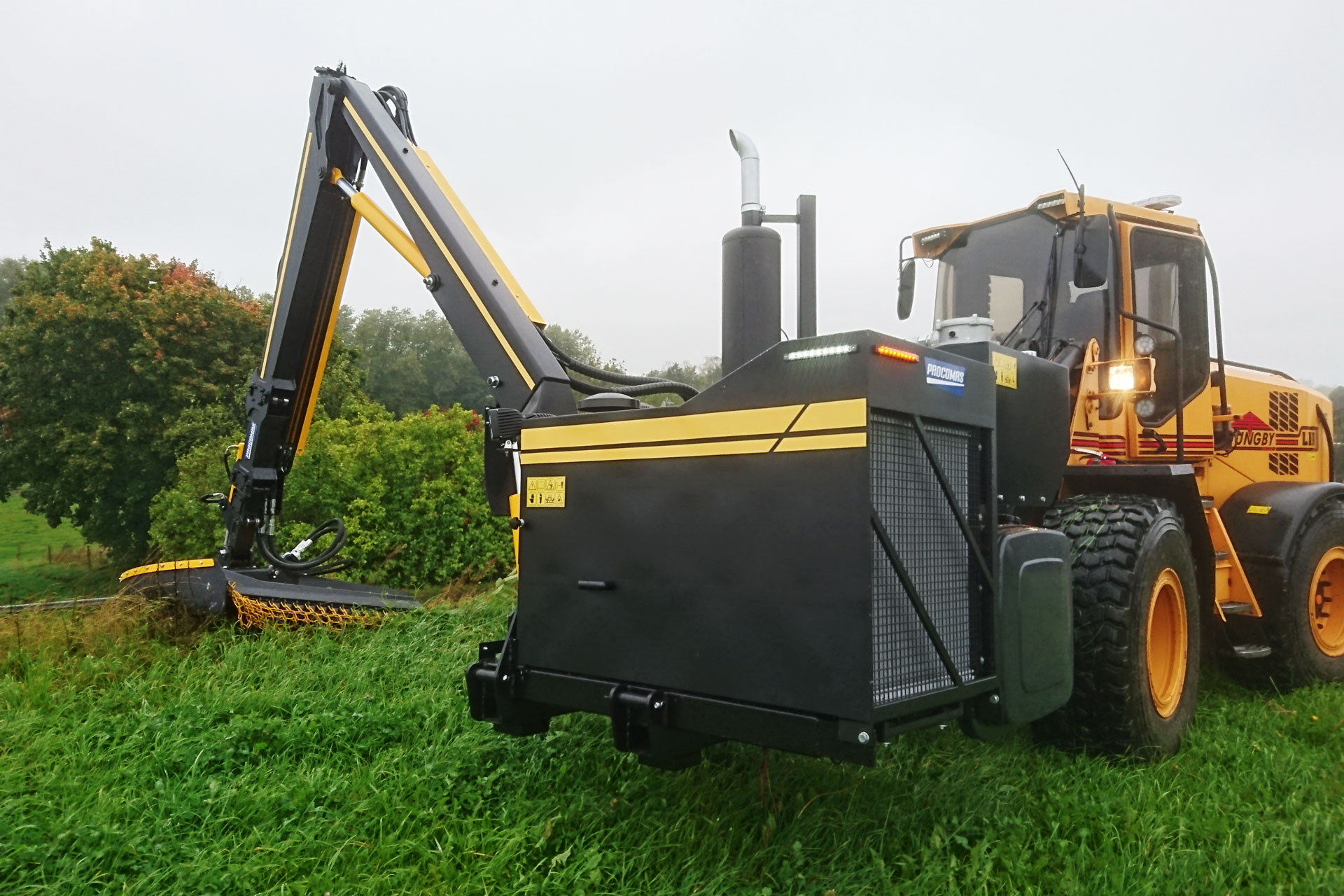

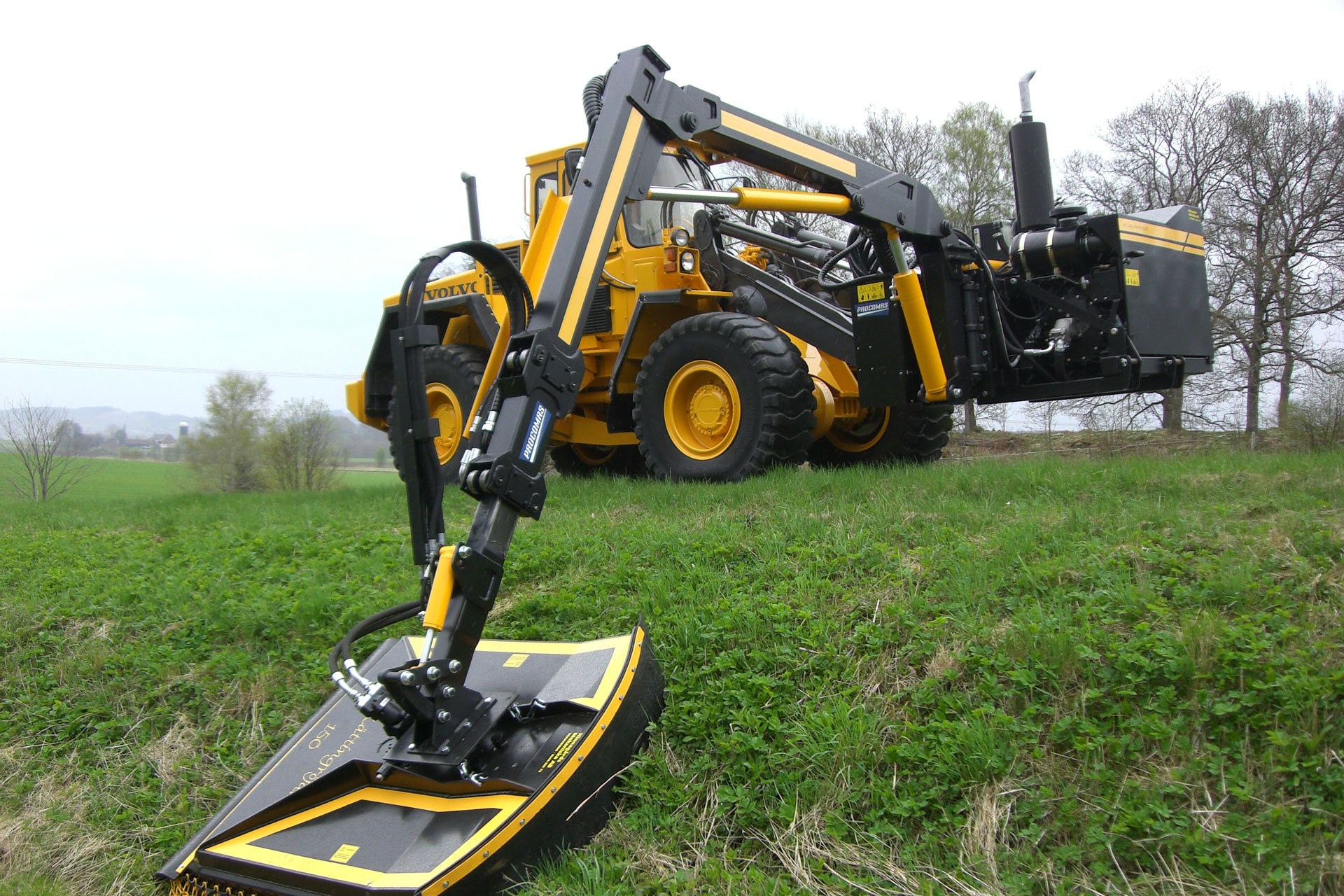

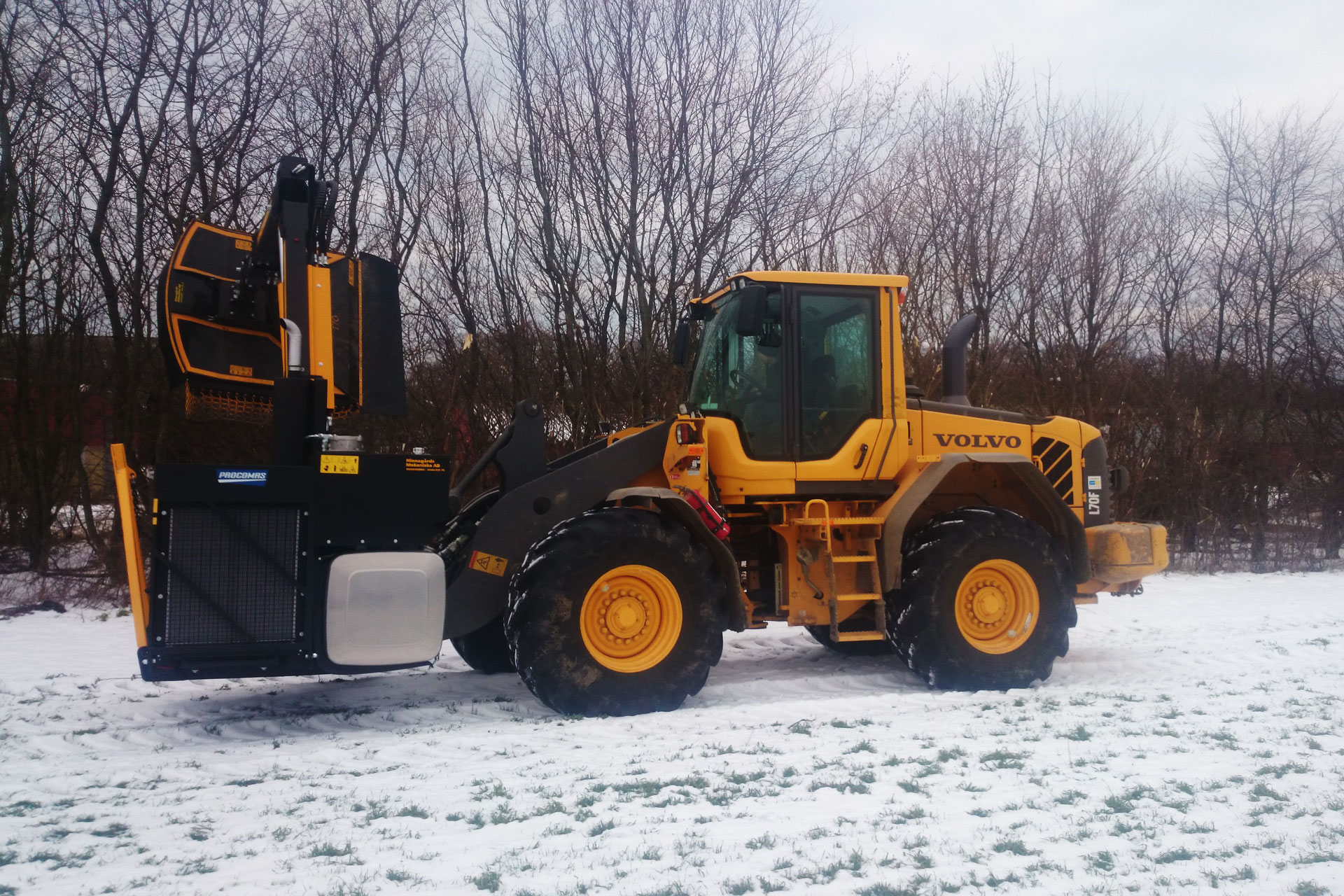

ENGINE PACKAGE
AX Slopemovers 8.30 – 10.00
Procomas is the company that builds our AX Slope Mowers 8.30 – 10.00 engine package. Procomas also manufactures sweepers with or without collectors. Sugar for leaves in various designs, etc.
Diesel engine
Brand IVECO
Meets emission requirements Stage 3
Max power kw/hp 129/170
Hydraulic system
Pump cutting head Sunfab 84 cc
Max pressure bar 350
Crane pump Sunfab 40 cc
Max pressure bar 250
Danfoss PVG 32 control valve
Maneuvering system
Joystick Prof 1
Warning system Oil pressure, temp, charge
Start, Stop Prop. With ramp function

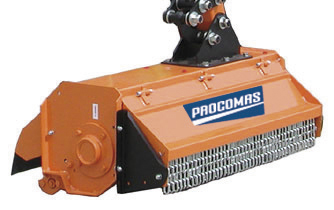

Cutting head
Throttle control Electric actuator
Electricity system
Voltage 24V DC
Battery 2*60Ah
Generator 70A
Weight & Volume
Weight kg 3000
Diesel tank 250 L
Hydraulic tank 200 L
Other
Tool attachment BM
Transport support Foldable

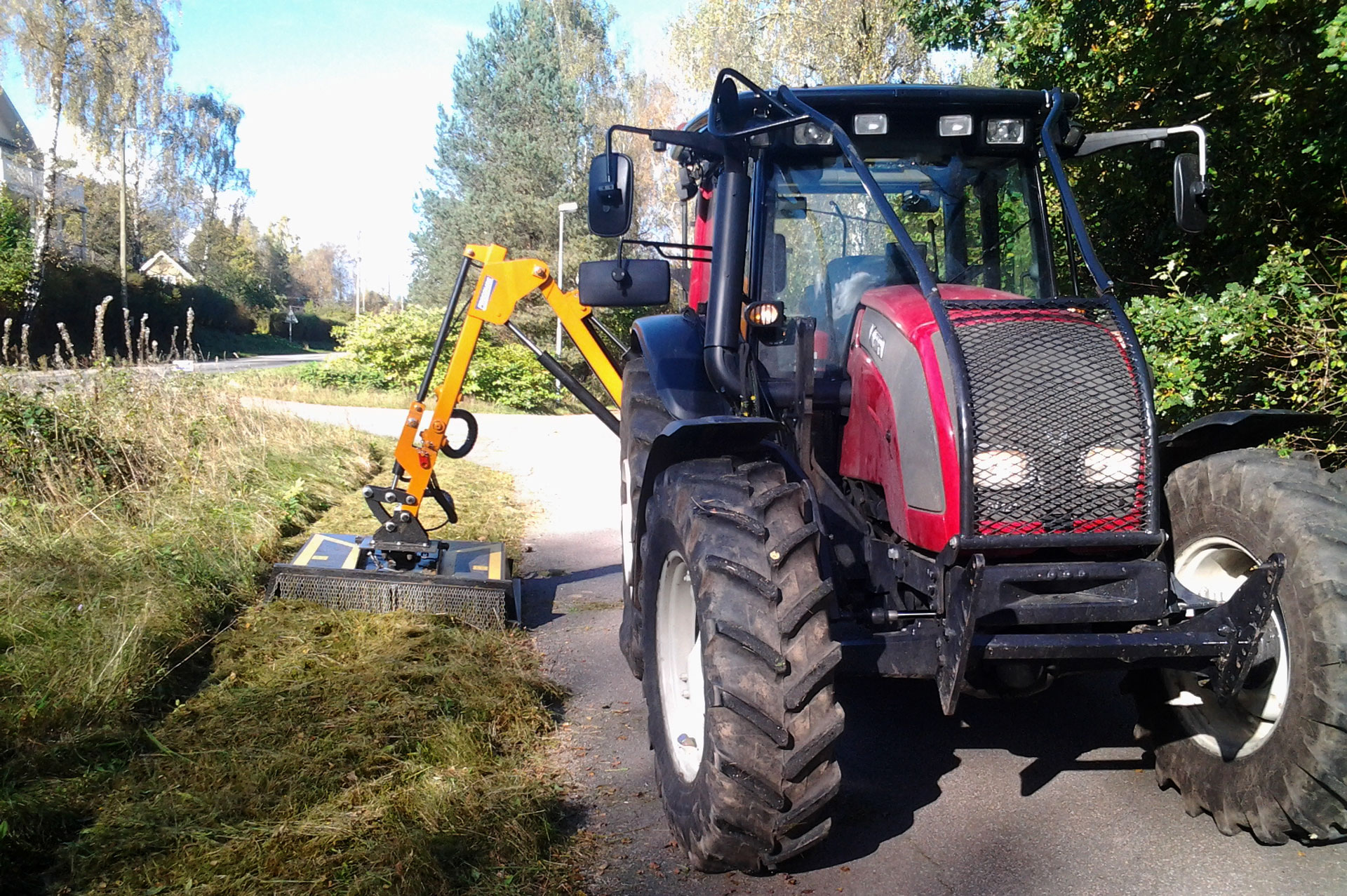

SLING CLIPPER
Procomas BSK/DS

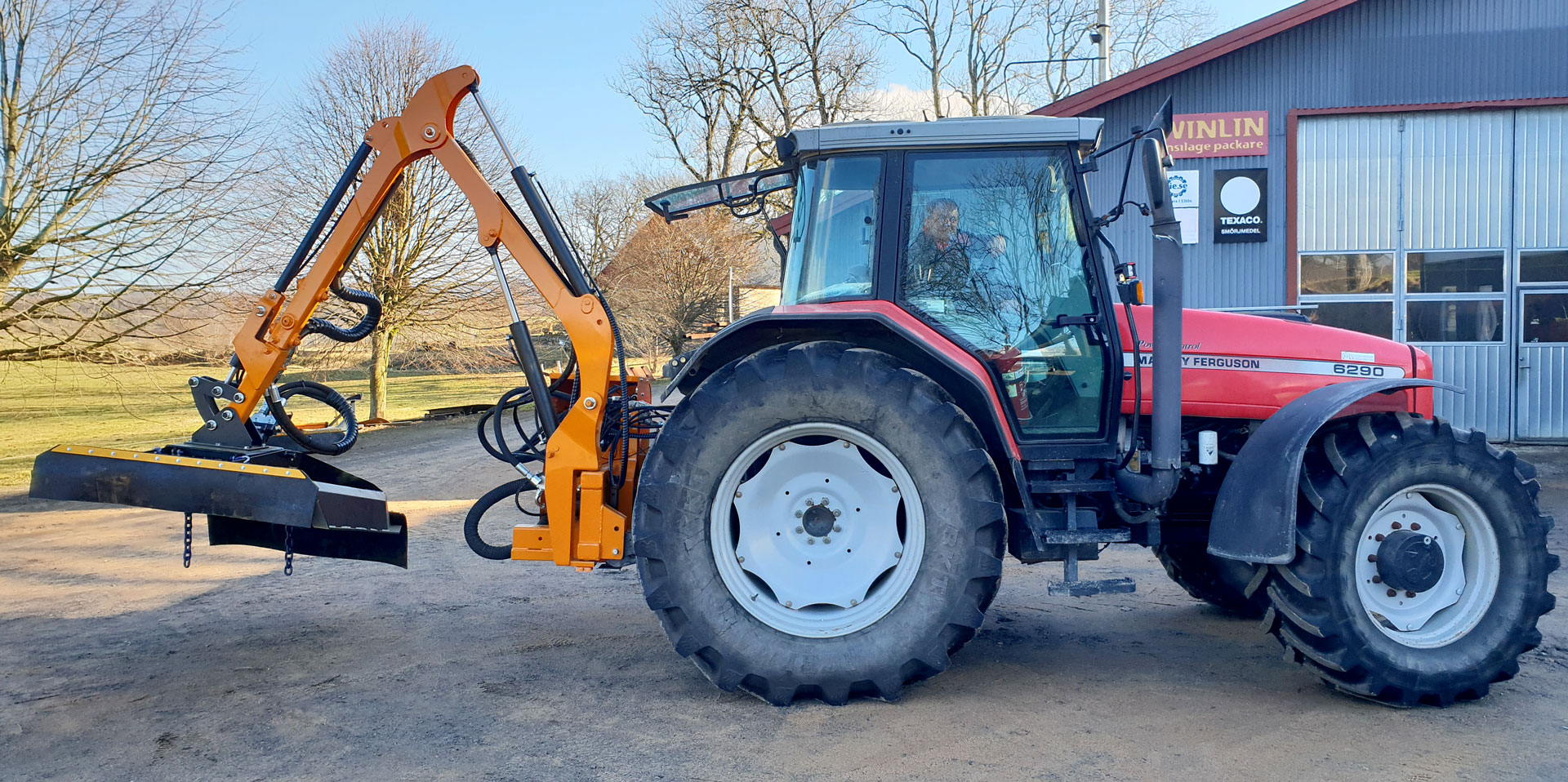

Procomas presents the new range of professional hydraulic slope mowers series BSK/DS which can be mounted at the rear or front of the tractor and works both on the right and left side of the tractor.
When working with the slope mower in the rear mounted position, it is pre-set to work with the cutting head in a forward position of 20° for better visibility during the operator’s work.
STANDARD TECHNICAL FEATURES AND ACCESSORIES
- Reach 6.50 m from the center of the tractor to the outer part of the cutting head including an 80 cm hydraulic extension.
- Suitable for mounting on tractors Hp 110/120 for the rear mounted version or for tractors, Hp 150/160 for the front mounted version.
- 100-120 cm cutting head with reversible rotor with universal Y-type blades F3-F4-F5; adjustable front and rear guard, height adjustable support roller.
- Double circuit independent hydraulic system with motor and high performance cast iron pumps; rotor power 56 Hp (41 Kw), rpm 2.900.
- Electro-hydraulic controls with constant flow and joystick.
- Oil cooler with thermostat.
- Rotation of the cutting head with a rotator driven by a hydraulic motor.
- Safety device to absorb any front impact in the two working directions.
- Equipment weight 1200 kg varies according to working width.
SLING CLIPPER
Procomas BSK/DS
Procomas presents the new range of professional hydraulic slope mowers series BSK/DS which can be mounted at the rear or front of the tractor and works both on the right and left side of the tractor.
When working with the slope mower in the rear mounted position, it is pre-set to work with the cutting head in a forward position of 20° for better visibility during the operator’s work.
STANDARD TECHNICAL FEATURES AND ACCESSORIES
- Reach 6.50 m from the center of the tractor to the outer part of the cutting head including an 80 cm hydraulic extension.
- Suitable for mounting on tractors Hp 110/120 for the rear mounted version or for tractors, Hp 150/160 for the front mounted version.
- 100-120 cm cutting head with reversible rotor with universal Y-type blades F3-F4-F5; adjustable front and rear guard, height adjustable support roller.
- Double circuit independent hydraulic system with motor and high performance cast iron pumps; rotor power 56 Hp (41 Kw), rpm 2.900.
- Electro-hydraulic controls with constant flow and joystick.
- Oil cooler with thermostat.
- Rotation of the cutting head with a rotator driven by a hydraulic motor.
- Safety device to absorb any front impact in the two working directions.
- Equipment weight 1200 kg varies according to working width.

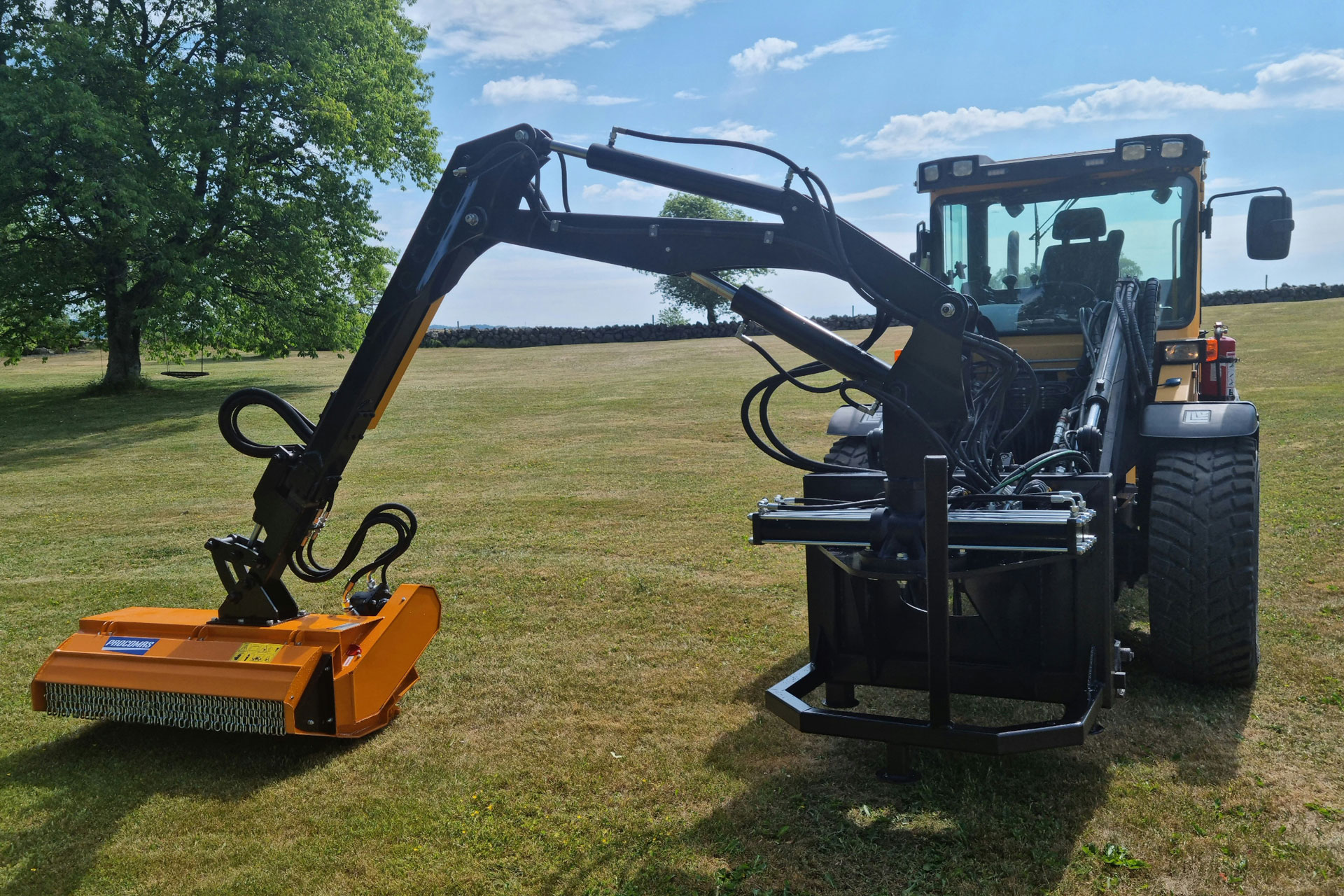

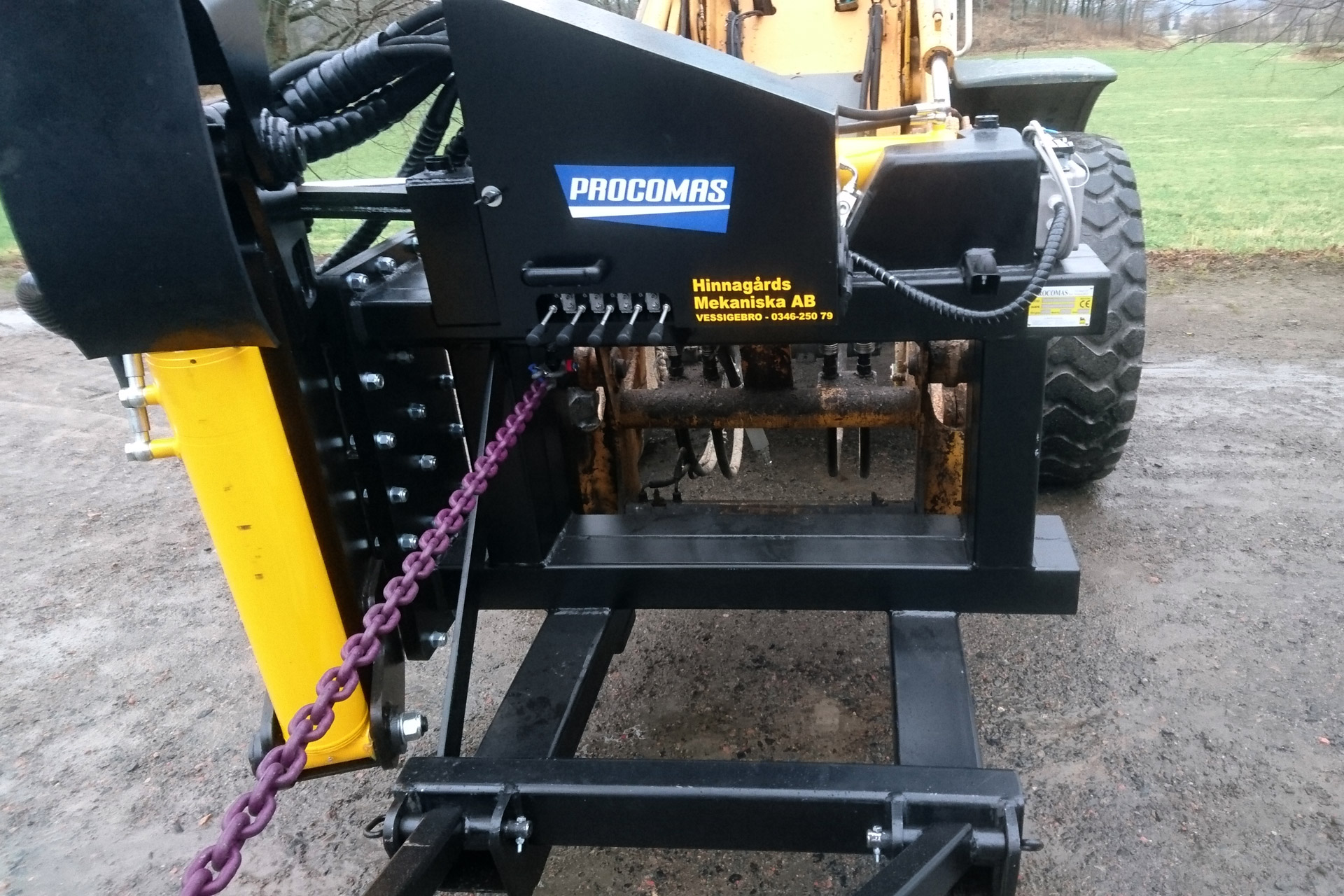

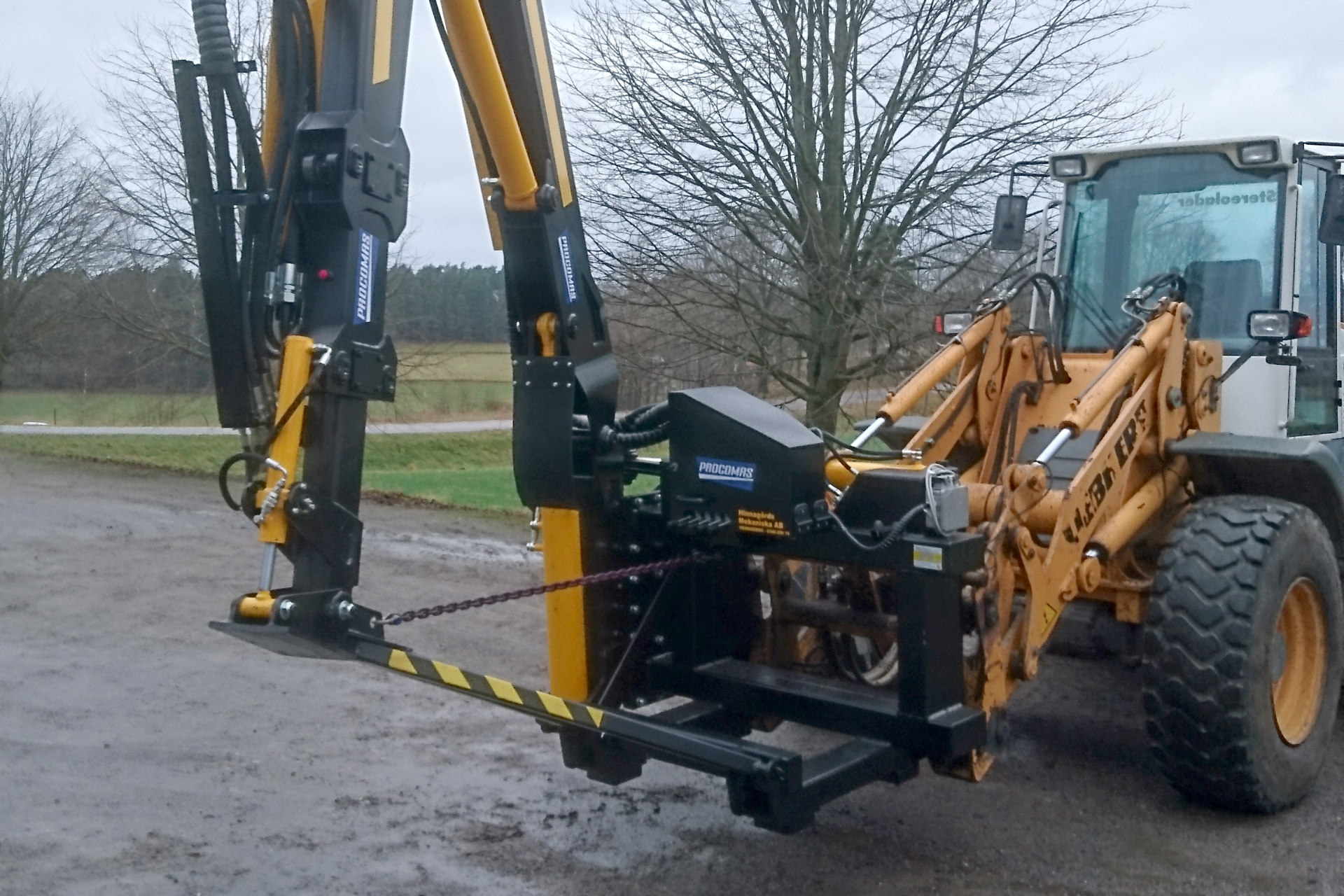

FRONT-MOUNTED CRANE ARM
Procomas BTS13-8-SM Range 8.20 – 10.00 m
The BTS13-8-SM is a slope mower for front mounting on wheel loaders.
The machine is available in 2 versions 8.20 and 10.00 The slope mower is driven by the hydraulics of the wheel loader. Electro-hydraulic start and stop of the cutting head in both directions.

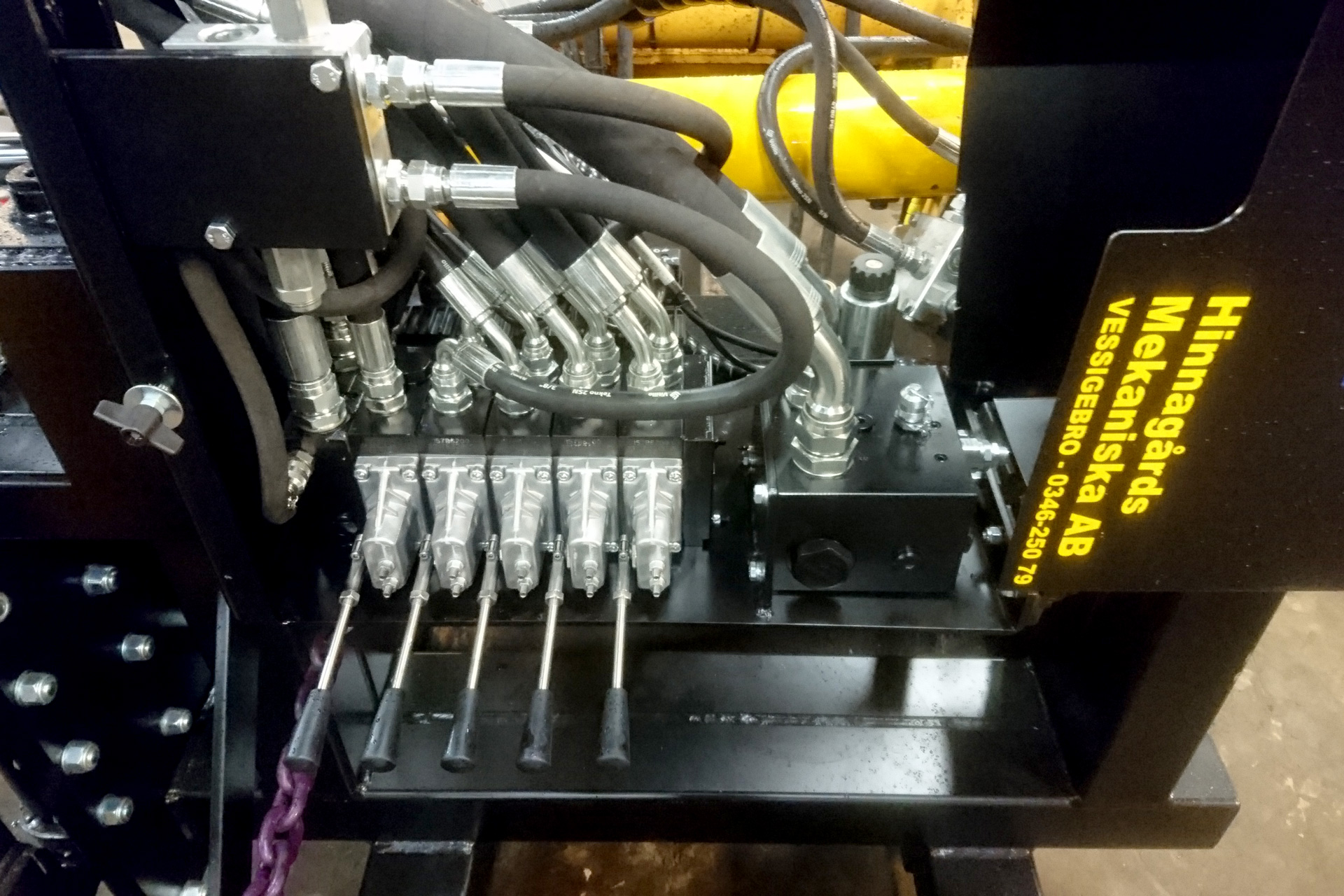

- Danfoss hydraulics PVG 32
- Danfoss joystick proff 1
- Range 8.20 – 10.00 meters.
- Cutting head 1.20 to 2.10 meters.
- Fastening Large BM
- Danfoss joystick proff 1
- Danfoss hydraulics PVG 32

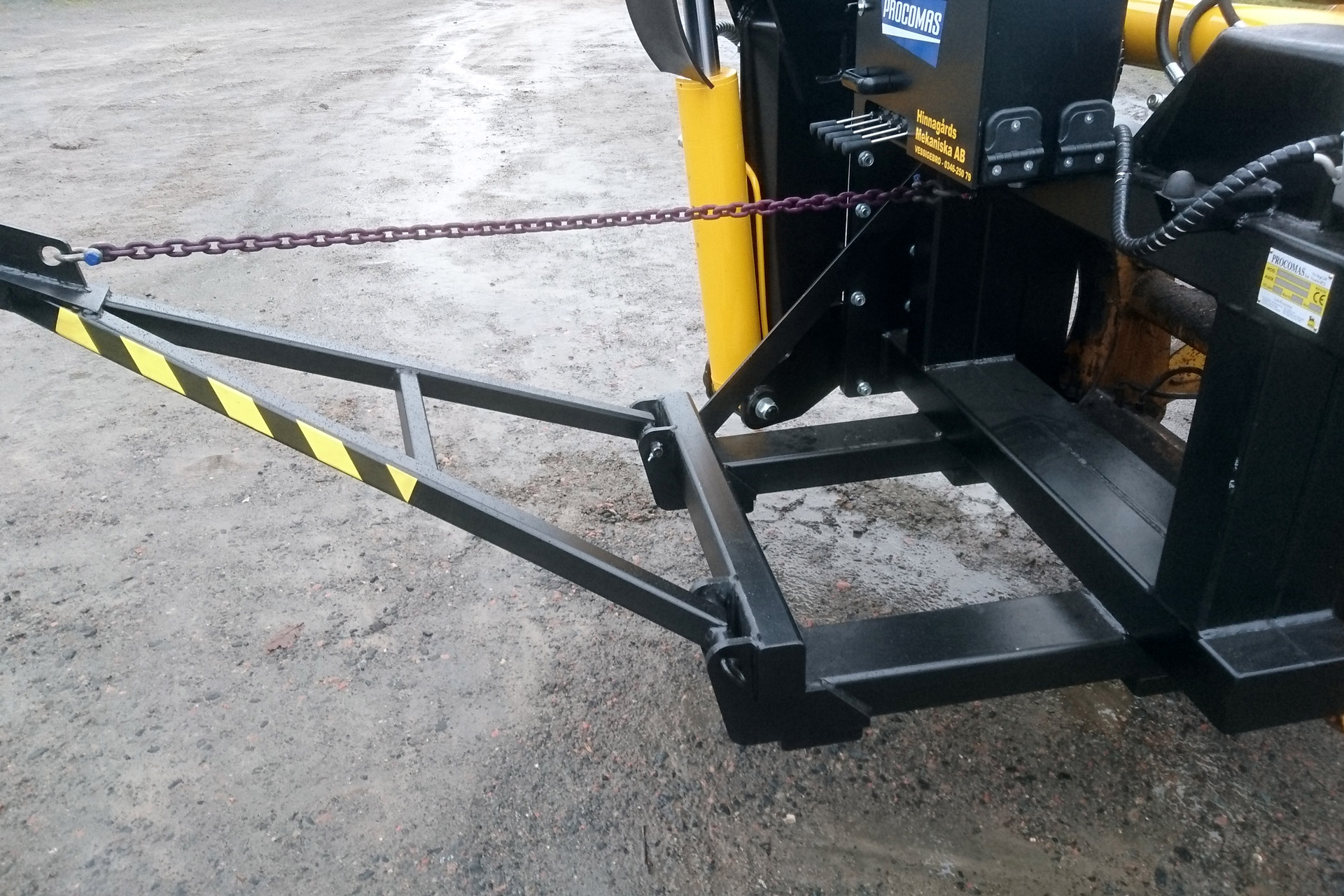

- Transport aid front
- Hydraulic flow 140 – 160 l/m, max 280 bar. Depending on which cutting head.
CENTRE-MOUNTED CRANE ARM
Procomas BS835C Range 7.40 – 10.50
Centrally mounted on the tractor, crane arm in heavy duty T1A steel tube; all joints are heavy duty and with greaseable bushings. The machine has good performance for those working in road maintenance.
Machine delivered complete with:
Heavy duty hydraulic cutting head 100 – 120 – 150 cm with Y or F3 type Y-shaped flails with reversible direction of rotation, throw protection and height adjustable support roller.
On request rotor F4-F5-F6-F8
STANDARD
- Double pumps in hydraulic system with motor and high performance cast iron pump.
- Gearbox for pumps and 540 rpm PTO.
- Hose cover plastic spiral.
- Controls with flexible cables.
- Hydraulic collision protection.
- Oil tank with 160 liters.
- Cross tensioner and power shaft.
- Assembly takes place in our workshop.
ACCESSORIES ON REQUEST
- Installed oil cooling system.
- Hydraulic sensing system on cylinder for lifting boom.
- Electro-hydraulic constant flow rate controls with joystick.
- Danfoss hydraulics PVG 32.
- Danfoss joystick proff 1.
- System with motor and high-pressure gear pump. (Piston pump) Sunfab.
- Variable piston pump. Sunfab.
- Rear light bar.
- Blower fan for roadside cleaning.
CENTRE-MOUNTED CRANE ARM
Procomas BS835C Range 7.40 – 10.50
Centrally mounted on the tractor, crane arm in heavy duty T1A steel tube; all joints are heavy duty and with greaseable bushings. The machine has good performance for those working in road maintenance.
Machine delivered complete with:
Heavy duty hydraulic cutting head 100 – 120 – 150 cm with Y or F3 type Y-shaped flails with reversible direction of rotation, throw protection and height adjustable support roller.
On request rotor F4-F5-F6-F8
STANDARD
- Double pumps in hydraulic system with motor and high performance cast iron pump.
- Gearbox for pumps and 540 rpm PTO.
- Hose cover plastic spiral.
- Controls with flexible cables.
- Hydraulic collision protection.
- Oil tank with 160 liters.
- Cross tensioner and power shaft.
- Assembly takes place in our workshop.
ACCESSORIES ON REQUEST
- Installed oil cooling system.
- Hydraulic sensing system on cylinder for lifting boom.
- Electro-hydraulic constant flow rate controls with joystick.
- Danfoss hydraulics PVG 32.
- Danfoss joystick proff 1.
- System with motor and high-pressure gear pump. (Piston pump) Sunfab.
- Variable piston pump. Sunfab.
- Rear light bar.
- Blower fan for roadside cleaning.

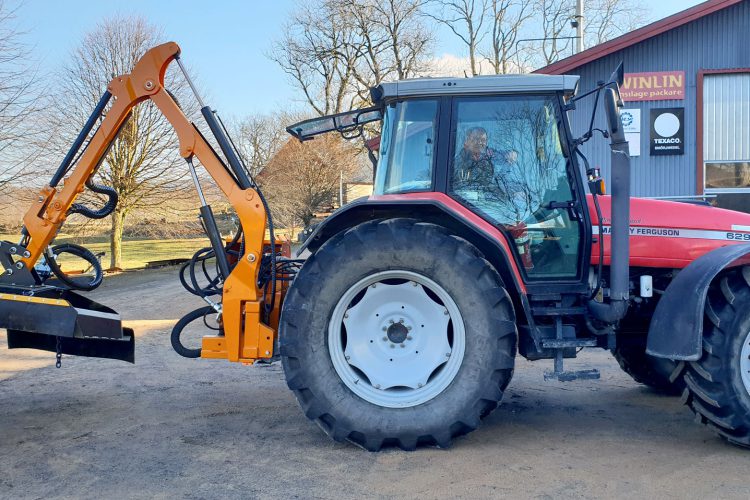

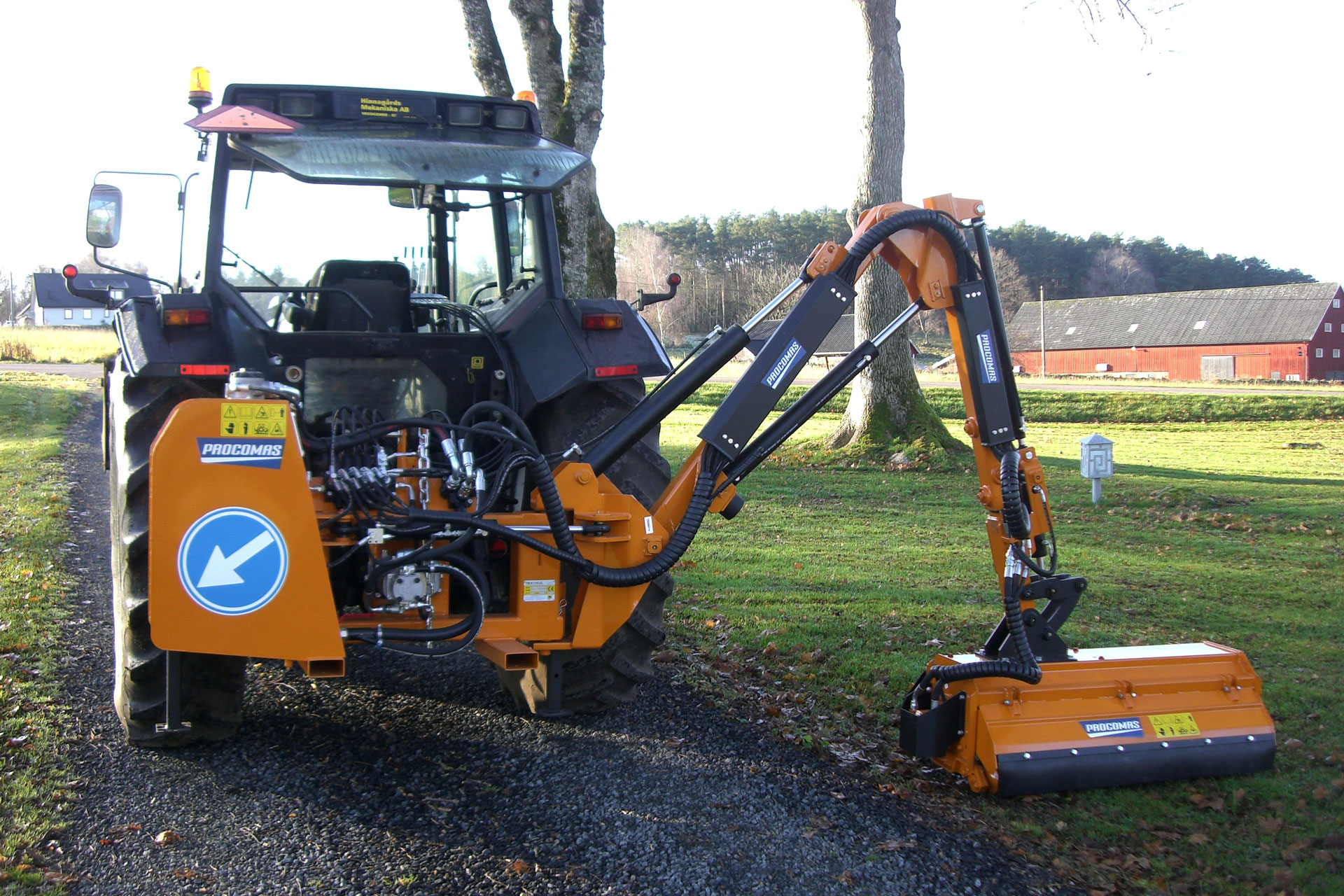

REAR-MOUNTED CRANE ARM
Procomas BS935P-BS935C Range 6.10 – 7.10
Mounted at the rear of the tractor, crane arm in high strength WELDOX 700 steel plate; all joints are heavy duty and with greaseable bushings. The machine has good performance for those working in road maintenance.
Machine delivered complete with:
Heavy duty hydraulic cutting head 100 – 120 – 150 cm with Y or F3 type Y-shaped flails with reversible direction of rotation, throw protection and height adjustable support roller.
On request rotor F4-F5-F6-F8
STANDARD
- Double pumps in hydraulic system with motor and high performance cast iron pump.
- Gearbox for pumps and 540 rpm PTO.
- Hose cover plastic spiral.
- Controls with flexible cables
- Hydraulic collision protection.
- Oil tank with 160 liters
- Cross tensioner and power shaft.
ACCESSORIES ON REQUEST
- Installed oil cooling system
- Hydraulic sensing system on cylinder for lifting boom.
- Electro-hydraulic constant flow rate controls with joystick
- System with motor and high-pressure gear pump. (Piston pump)
- Variable piston pump.
- Rear light bar.
- Blower fan for roadside cleaning.
